More than half of RV owners who attempt a toilet upgrade end up making at least one costly measurement mistake — and the wrong toilet sitting in a shopping cart is a frustrating (and expensive) lesson. So, do all RV toilets fit the same? The short answer is no, and understanding why can save a lot of headaches on the road. This guide breaks down every key compatibility factor so the next toilet swap goes smoothly.
Key Takeaways 🚐
- RV toilets are NOT universal — rough-in measurements, flange bolt patterns, and water connections all vary by model and manufacturer.
- The rough-in measurement (wall to floor flange center) is the single most critical dimension to measure before buying.
- Thetford and Dometic share the same bolt pattern, making cross-brand swaps easier — but other factors still matter.
- Water supply threads on RV toilets differ from residential toilets, so standard plumbing fittings won’t work.
- Bowl shape, seat height, and material all affect comfort, hygiene, and whether a toilet physically fits in the space.
Would you like to save this article?
We'll email this post to you, so you can come back to it later to read!
Do All RV Toilets Fit the Same? Understanding the Core Compatibility Factors
The idea that any RV toilet can simply drop into any RV is a common myth. Several distinct measurements and specifications determine whether a toilet will fit — and function — properly.

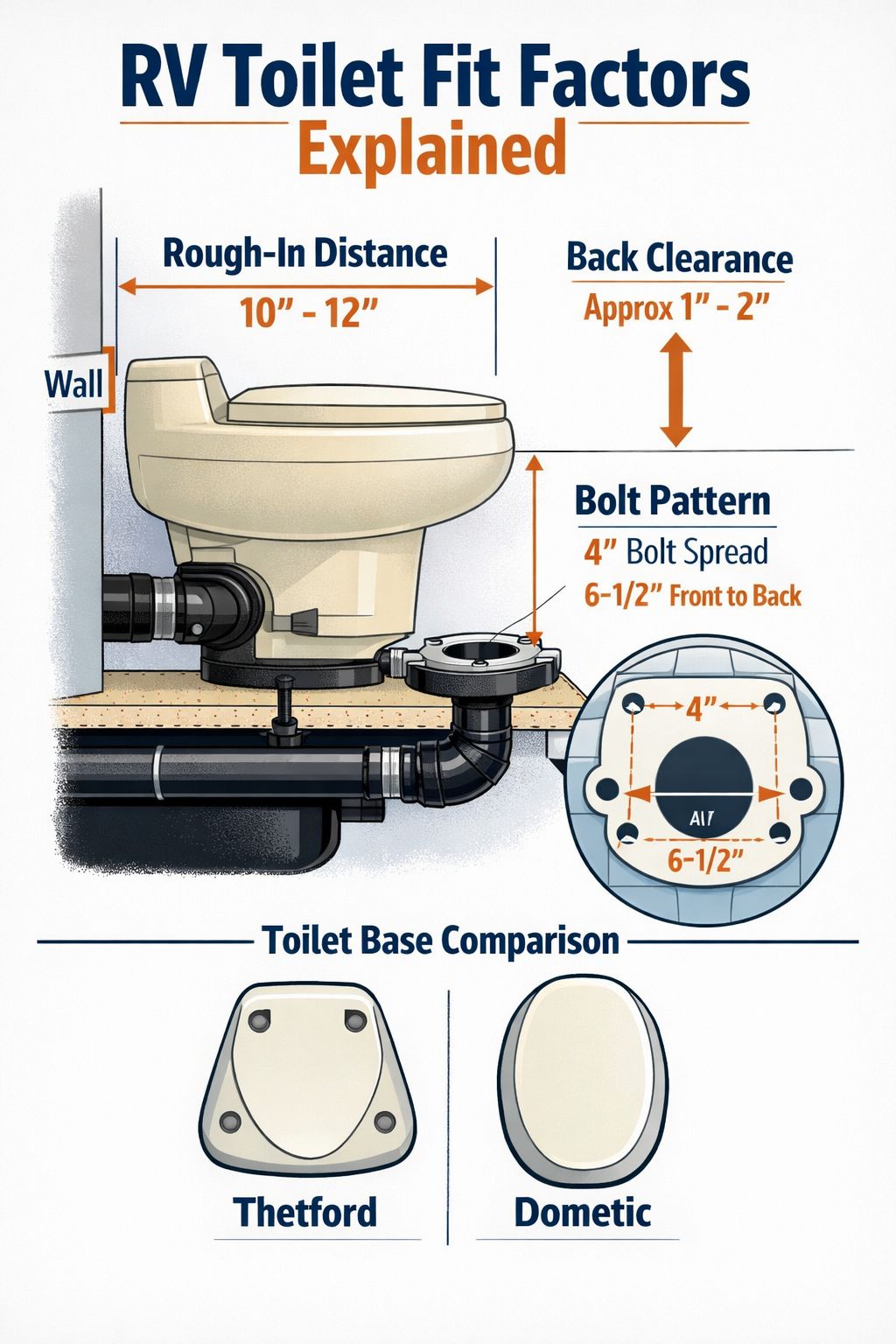

The Rough-In Measurement: The Most Important Number
The rough-in is the distance from the wall behind the toilet to the center of the floor flange (the drain opening). This single measurement is the primary compatibility factor for any RV toilet replacement [1].
💡 Pull Quote: “Getting the rough-in wrong is the #1 reason RV toilet replacements fail — measure twice, buy once.”
Different RV models are built with different rough-in distances. If the new toilet’s rough-in doesn’t match the existing one, the toilet either won’t reach the flange or will sit too far from the wall. Always measure the existing toilet’s rough-in before shopping.
How to measure the rough-in:
- Measure from the finished wall to the center of the floor bolt caps.
- Write this number down — it’s the most important spec to match.
- The new toilet’s rough-in should match or be slightly less than this measurement.
Back-to-Wall Clearance: Don’t Overlook This One
Upgrading to a larger or elongated bowl is tempting for comfort reasons, but it can create a “too deep” fitting problem when wall clearance is insufficient [2]. Proper clearance between the front of the toilet and the wall (or any obstruction) should be approximately 12 inches [2].
In compact RV bathrooms, this clearance is often tighter than expected. Always measure the available depth before choosing an elongated bowl style.
Bolt Patterns: Good News for Thetford and Dometic Owners
Here’s a bright spot: Thetford and Dometic, the two dominant RV toilet manufacturers, use identical flange bolt spacing patterns [6]. This means swapping between their models is straightforward from a bolt-pattern perspective. However, this compatibility doesn’t extend to every other dimension or connection type, so it’s still essential to check all measurements [6].
| Brand | Bolt Pattern Compatible With |
|---|---|
| Thetford | Dometic ✅ |
| Dometic | Thetford ✅ |
| Other brands | Check manufacturer specs ⚠️ |
Water Supply Line Connections: A Frequently Missed Detail
Even when the floor flange lines up perfectly, the water supply connection can still cause problems. Water supply line configurations vary significantly between RV models, depending on how the RV manufacturer originally routed the supply line [2].
Key differences to know:
- RV toilets use 1/2-inch male pipe threads, while residential toilets use 5/8-inch pipe threads — these are NOT interchangeable [2].
- New supply lines, adapters, or rerouting may be needed when upgrading [2].
- Always inspect the existing water connection before purchasing a replacement.
This is one reason why RV toilets cannot simply be swapped with a standard residential toilet from a home improvement store.
Choosing the Right RV Toilet: Size, Shape, Height, and Material
Once the compatibility measurements are confirmed, it’s time to think about comfort and practicality. Do all RV toilets fit the same in terms of comfort and usability? Definitely not — and these differences matter more than many people expect.
Seat Height: Residential Comfort in a Compact Space
Most modern RV toilet replacements offer residential-height seats at 18 inches or higher [1]. This is a significant upgrade from older, shorter RV toilets that can feel uncomfortable for taller adults or those with mobility concerns.
However, some RV bathroom layouts simply don’t have the vertical clearance for a taller toilet. Always check the height of the existing toilet and compare it to available overhead space before upgrading.

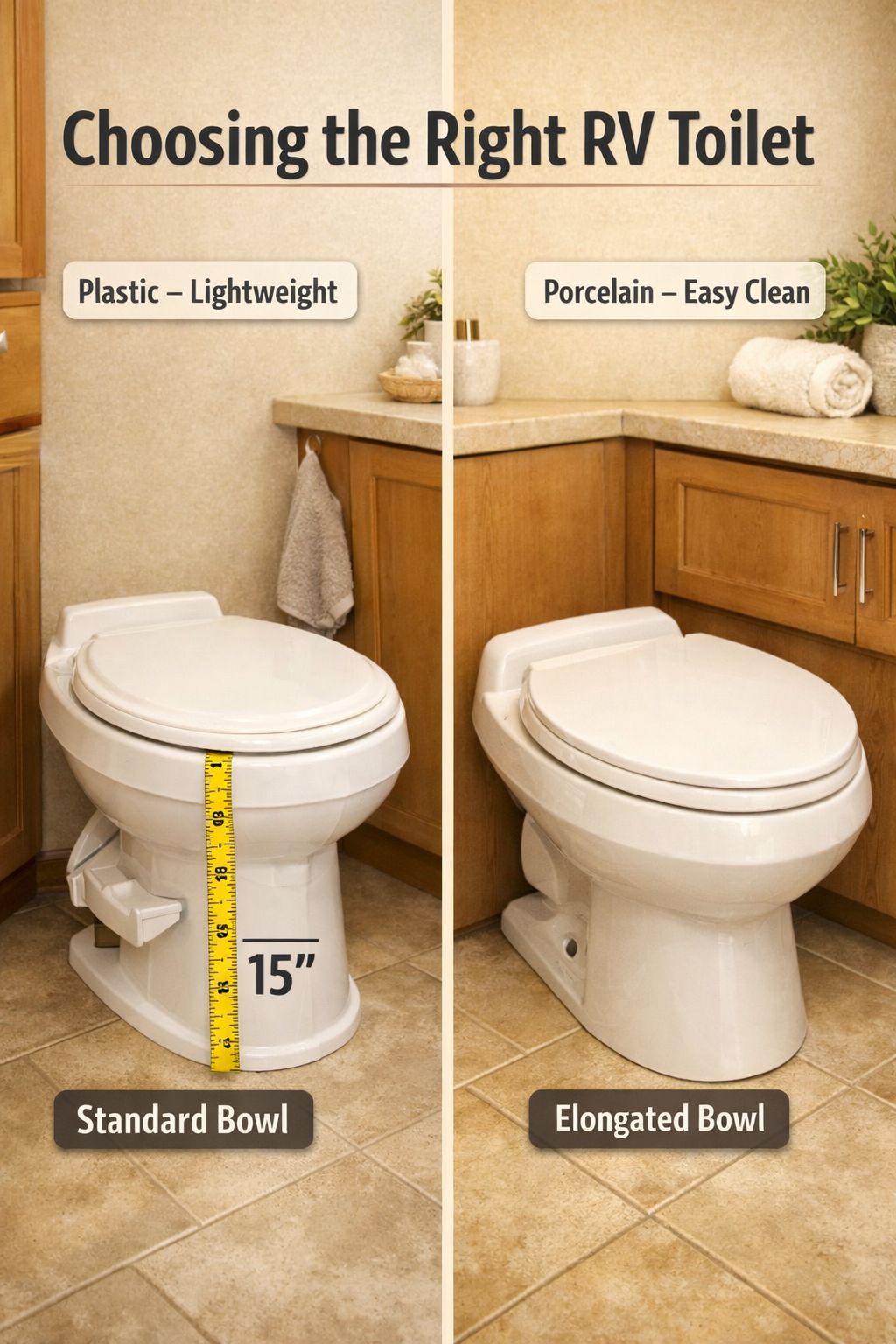

Bowl Shape: Elongated vs. Standard (Round)
| Bowl Type | Pros | Cons |
|---|---|---|
| Elongated | More comfortable, better hygiene [1] | Requires more depth, back-to-wall clearance [2] |
| Standard/Round | Compact, fits tight spaces | Less comfortable for longer use |
Elongated bowls provide more seating surface and are generally considered more hygienic [1]. But in a small RV bathroom, the extra few inches of depth can be the difference between a toilet that fits and one that doesn’t.
Material: Plastic vs. Porcelain
The material of the toilet bowl affects weight, maintenance, and long-term satisfaction [1].
Plastic Bowls 🪣
- ✅ Lightweight — important for RV weight limits
- ✅ Budget-friendly
- ❌ Harder to clean thoroughly
- ❌ Can absorb odors over time
Porcelain Bowls 🚽
- ✅ Resists odors naturally
- ✅ Easier to clean
- ❌ Heavier — adds to overall RV weight
- ❌ More expensive upfront
For full-time RVers or those who camp frequently, porcelain is often worth the extra investment for easier maintenance [1]. Weekend warriors on a budget may find plastic perfectly adequate.
Flush Type: Another Variable to Consider
RV toilets come in several flush configurations:
- Foot-pedal flush — most common in traditional RV toilets
- Hand-lever flush — more similar to residential feel
- Electric flush — quieter, consistent water use
- Macerating toilets — grind waste for easier tank management
Each flush type has different water connection and installation requirements, adding another layer to the “do all RV toilets fit the same?” question.
Quick Checklist Before Buying a Replacement RV Toilet ✅
Use this checklist to avoid the most common mistakes:
- Measure the rough-in distance (wall to flange center)
- Check back-to-wall clearance (aim for at least 12 inches)
- Identify the existing bolt pattern (Thetford/Dometic or other)
- Inspect the water supply connection type and thread size
- Measure available height for seat clearance
- Decide between elongated or standard bowl based on space
- Choose plastic or porcelain based on weight and cleaning preference
- Confirm the flush type matches existing plumbing setup
Conclusion: Measure First, Buy Second
So, do all RV toilets fit the same? Absolutely not — and now it’s clear exactly why. From rough-in measurements and bolt patterns to water supply threads and bowl depth, RV toilet compatibility involves multiple factors that vary across brands, models, and RV layouts.
Actionable next steps:
- Grab a tape measure and record the rough-in distance before doing anything else.
- Check back-to-wall clearance to determine if an elongated bowl is realistic.
- Identify the current brand — if it’s Thetford or Dometic, cross-brand swaps are easier.
- Inspect the water supply line and note the thread size to avoid connection surprises.
- Visit a trusted RV parts retailer or consult an RV forum community for model-specific advice [3][7].
A little preparation goes a long way. With the right measurements in hand, finding a compatible — and comfortable — RV toilet replacement becomes a straightforward upgrade rather than a frustrating ordeal. Happy camping! 🏕️
